1972 Parking Lamps/Headlamp Bezels



ChevyWorld.net
Supporters

GMs docs that I have show the 72 Concours and Concours Estate have a clear lens with amber bulb; the Nomad and Greenbrier are just the opposite, amber lens with clear bulb. Why the difference? Only GM knows. Doesn't seem to make sense but the same is true for the base Chevelle series (134xx) vs. the Malibu series (136xx). The base Chevelle got clear lens/amber bulb while the Malibu got amber lens/clear bulb. It should be noted that other GM docs show only the 1157 bulb (clear) for parking lamps.



It had nothing to do with options (nor were the lenses/lamps optional via one or the other) nor did color make a difference. It was all based on the series.

There may have been a change during the production year. Chevrolet often did such things. I have photos of Malibus (135/136xx) both ways. I have photos of very early production run Malibus with amber lenses and very late production run Malibus with clear lenses. With or without the SS option doesn't seem to matter either.



Headlamp bezels are another item that seemed to change.  GM docs show the Malibu series got bright headlamp bezels while the Chevelle series got black bezels and the parking lamp bezels were bright regardless of series.



Most of the example photos below are what are probably unrestored cars. Those that are probably restored (hence not original) are noted with an asterisk ( * ).



© ChevyWorld



© ChevyWorld

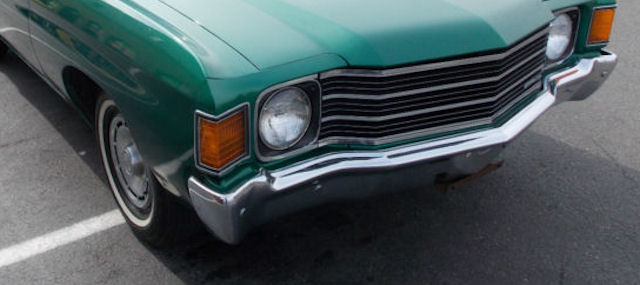

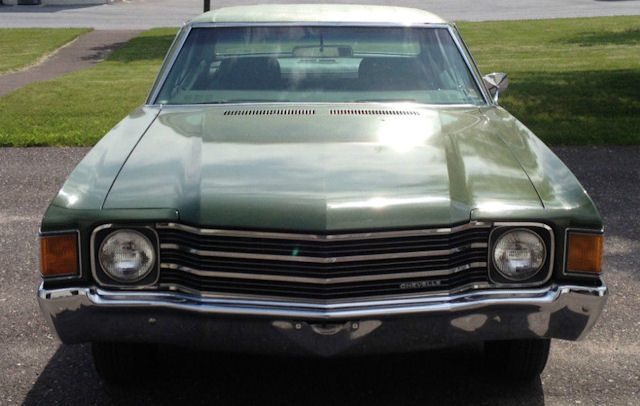

Oshawa Chevelle sport coupe - March 1972. Amber lens & black bezel.



© ChevyWorld

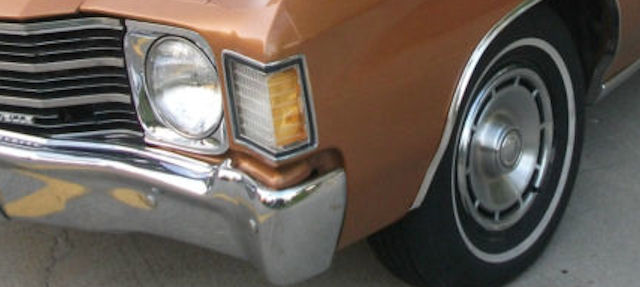

Kansas City Malibu 4-door sedan - January 1972. Clear lens & bright bezel.



© ChevyWorld

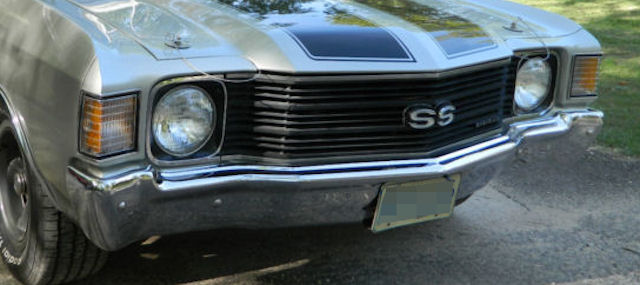

Baltimore Malibu sport coupe - January 1972. Clear lens & black bezel. *



© ChevyWorld

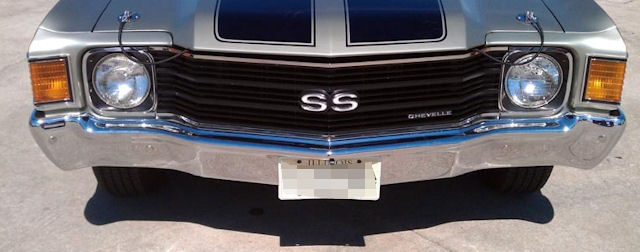

Kansas City Malibu sport coupe - September 1971. Amber lens & black bezel. *



© All Rights Reserved

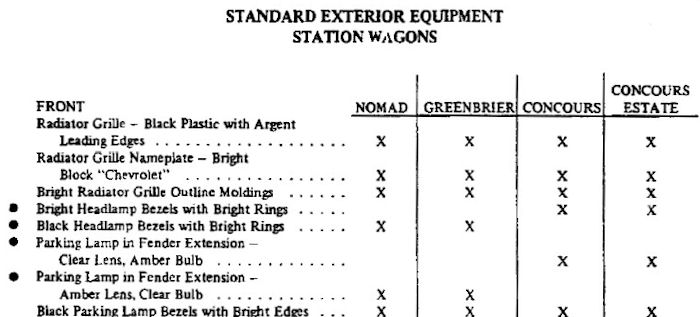

(Bullet indicates the data was revised in December 1971)



PDF file of 200 park lamp/headlamp bezel findings from all plants.



© All Rights Reserved

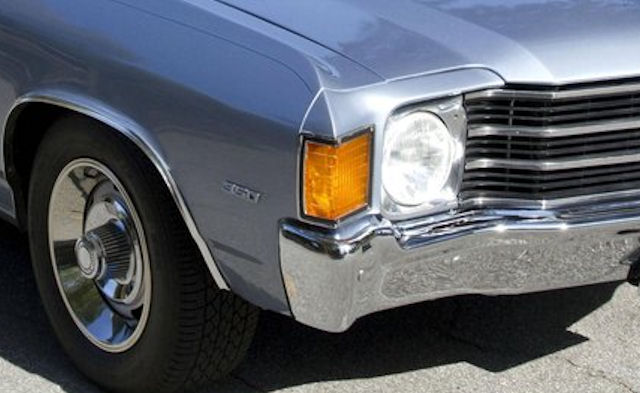

Van Nuys Concours station wagon - April 1972. Amber lens & bright bezel.



© All Rights Reserved

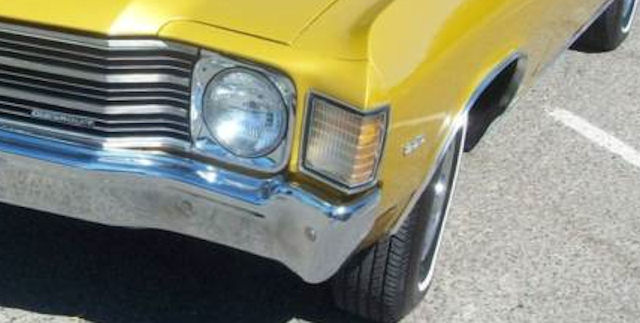

Concours station wagon - unknown plant or date. Clear lens & bright bezel.



© All Rights Reserved
Malibu sport coupe - unknown plant or date. Amber lens & black bezel.



Discrepancies/Exceptions

There always seems to be exceptions to every rule. Listed below are some exceptions to the 'rule' of seat belt warning lamp, lens/bulb color, and bezel color. Shown above are some random examples found and they don't always match what they're supposed to have for the headlamp bezel and/or lens color.

→ 01B Malibu Baltimore - amber lens, bright bezels, no seat belt warning lamp.



AIM & Parts Book

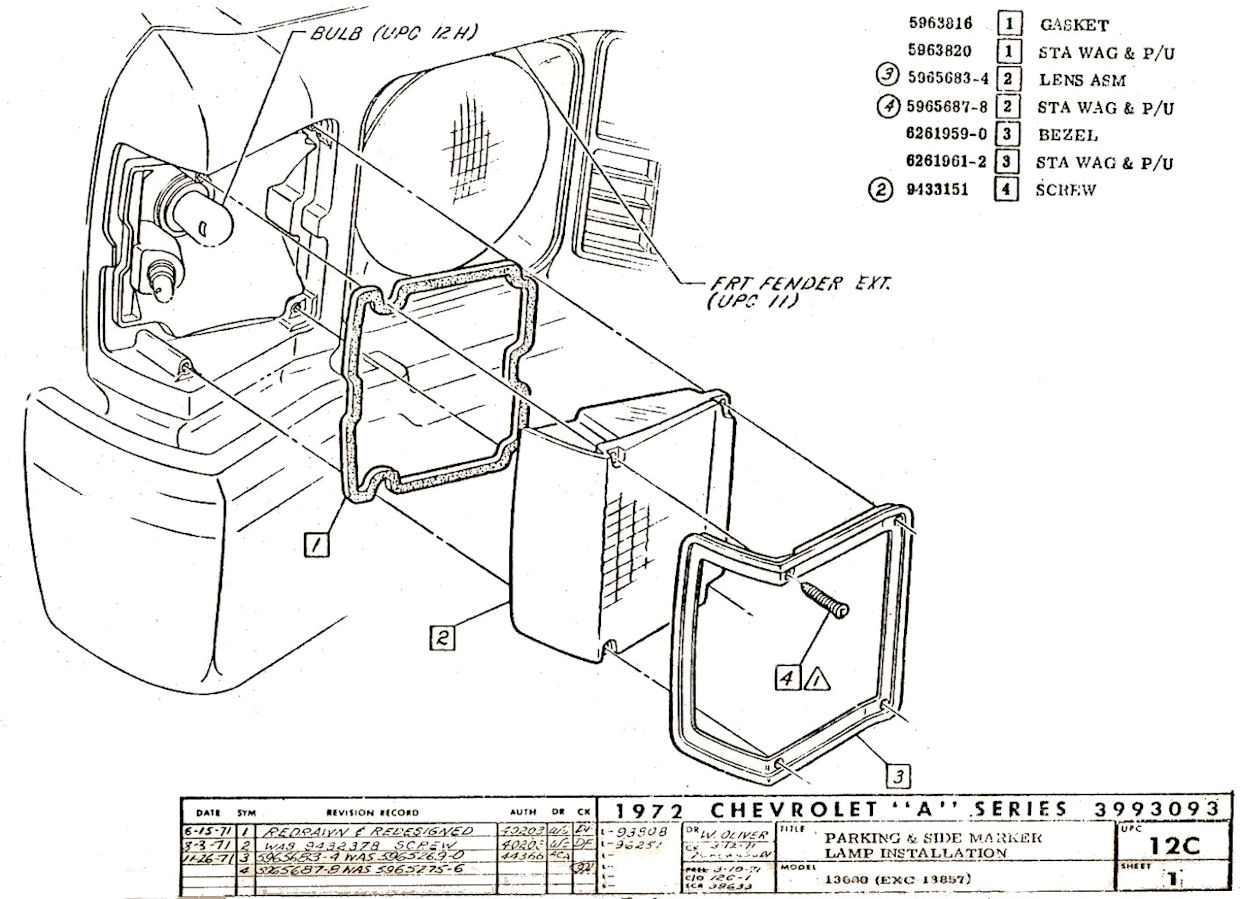

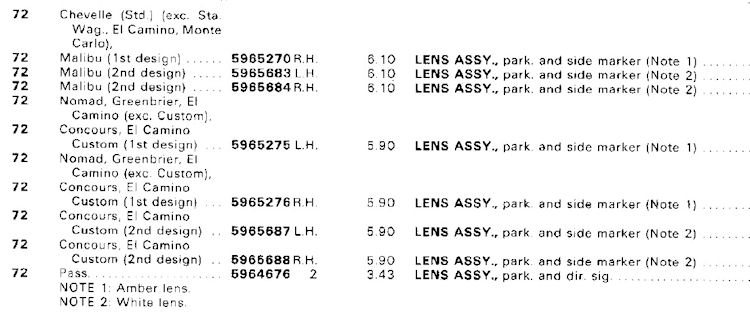

The 1972 Factory Assembly Instruction Manual shows a drawing change on 11/26/71 indicating a change from parking lamp lens to another and my parts book shows a variety of lenses.



© All Rights Reserved
© All Rights Reserved



Part numbers for items 3 & 4 are a bit hard to read, so:
3 - From 5965269-0 to 5965683-4
4 - From 5965275-6 to 5965687-8



© All Rights Reserved



(Click for larger image)
